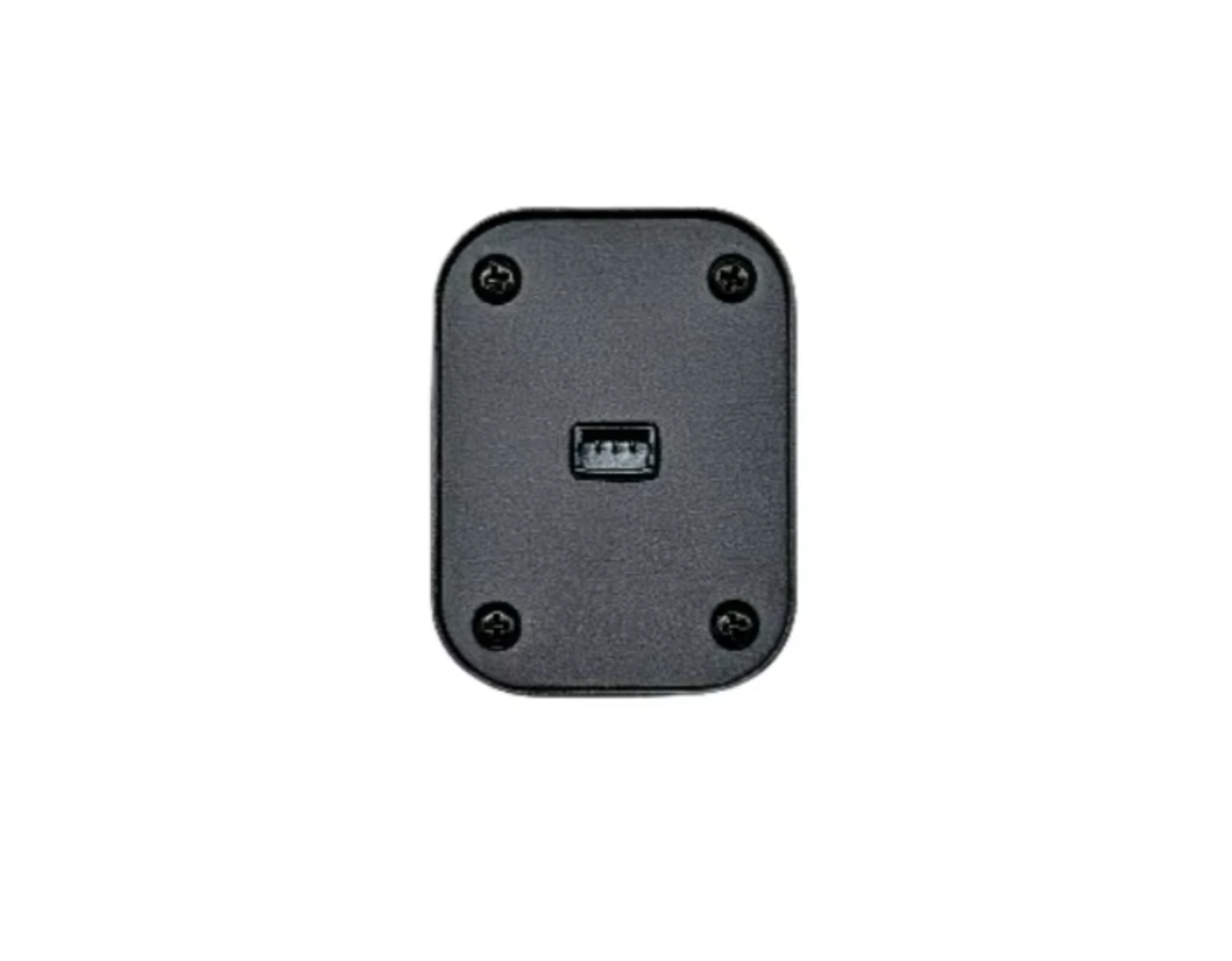

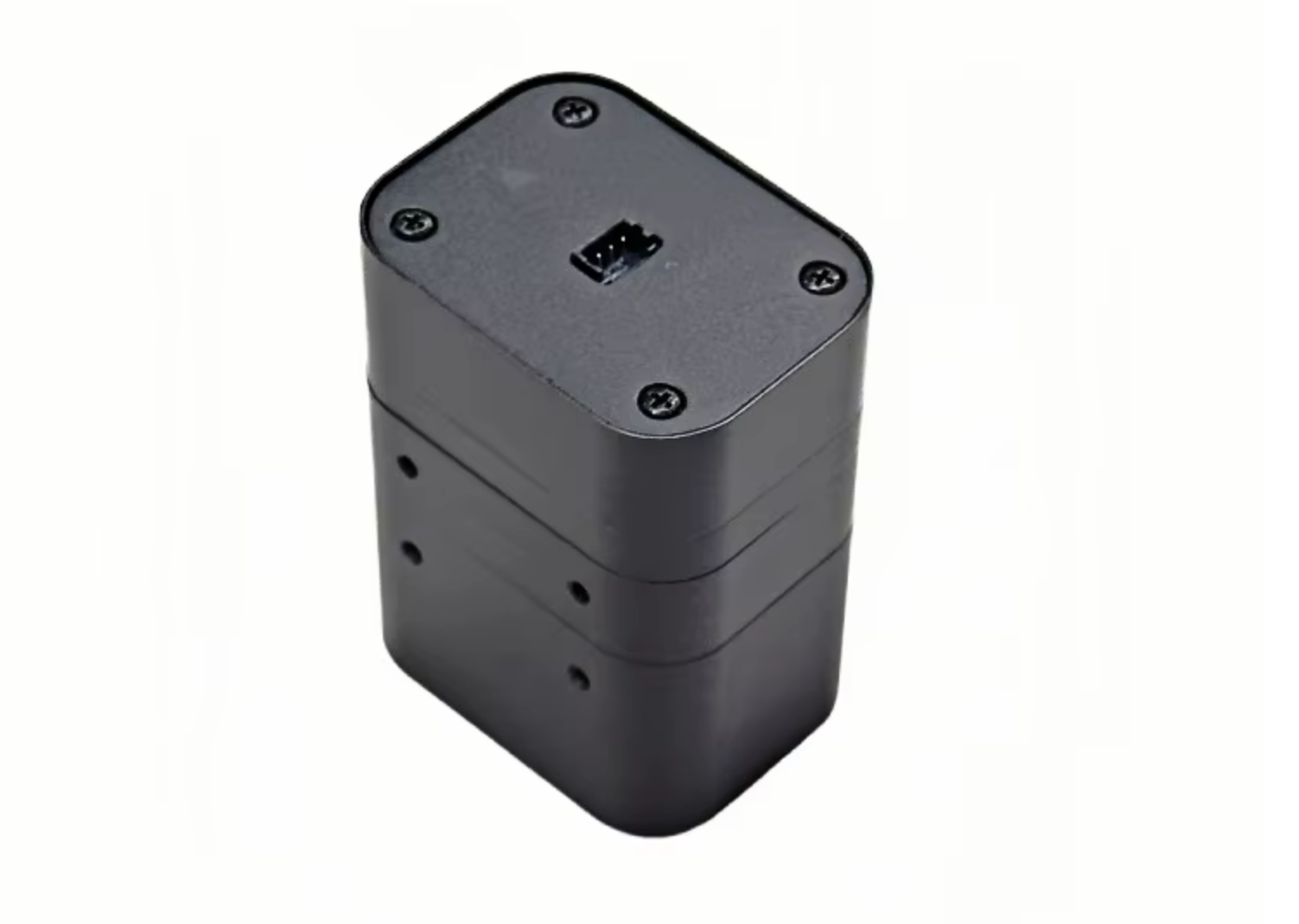

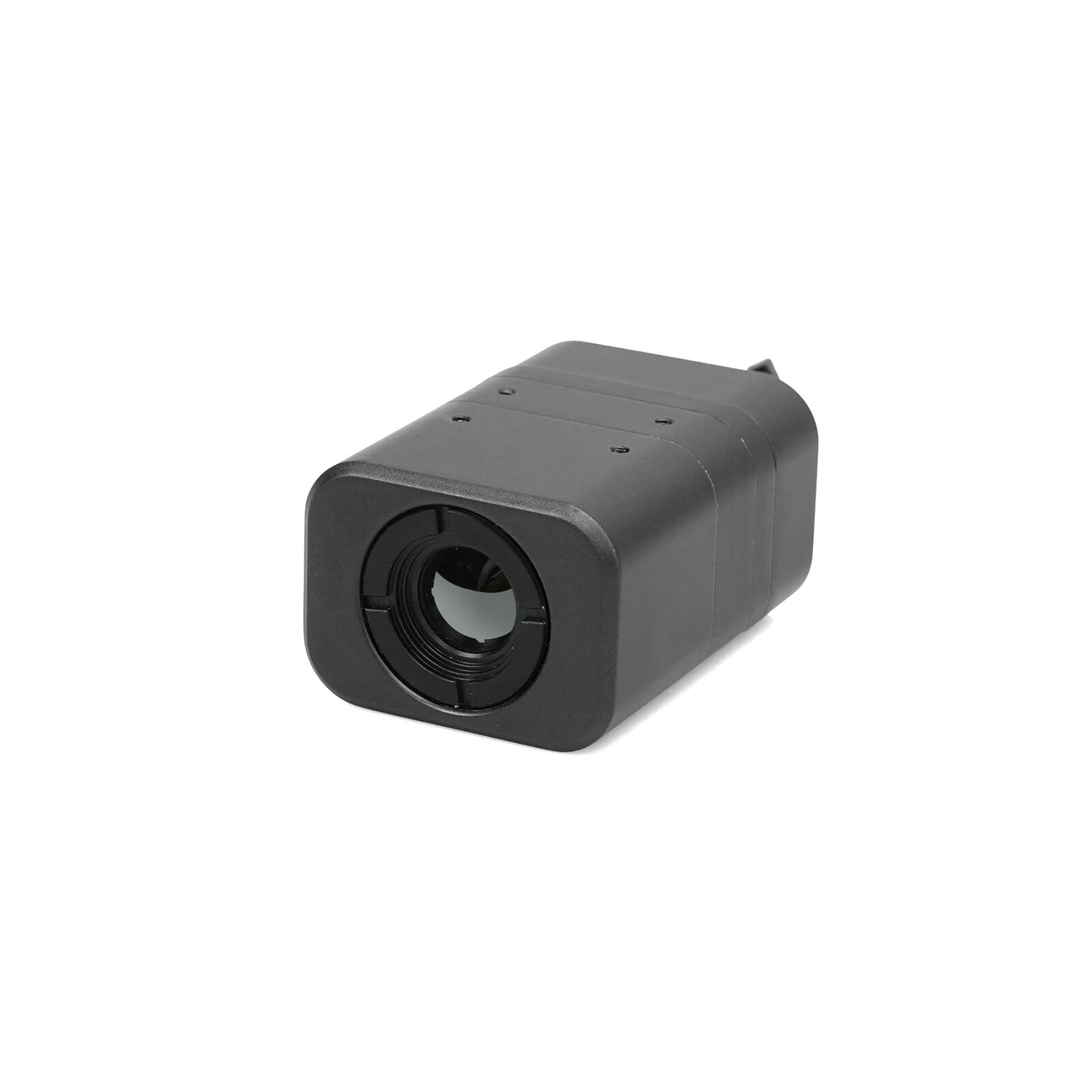

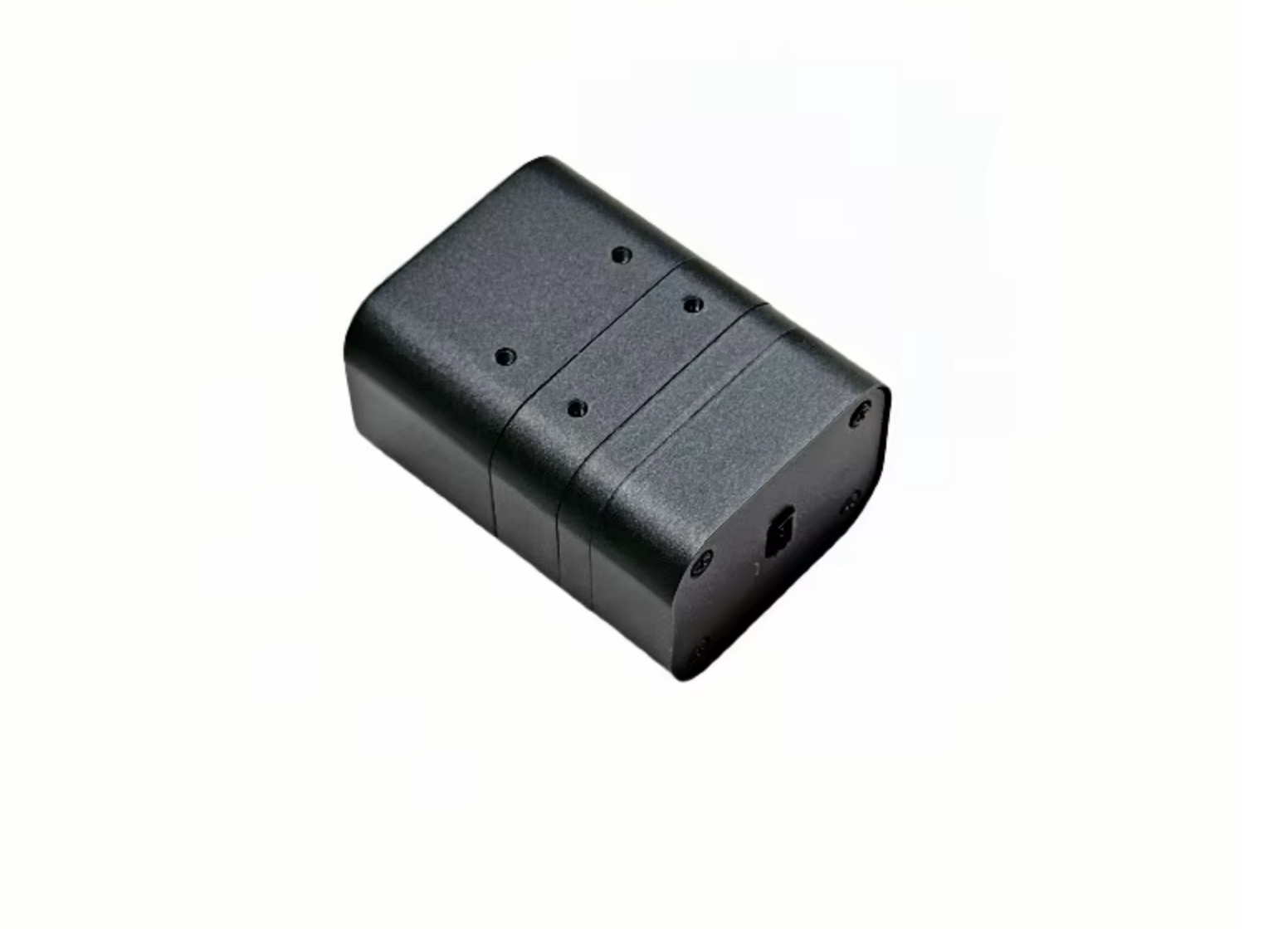

Walksnail Y046 infrared camera with 640*512 resolution

Designed for a wide range of applications, our integrated infrared camera excels in detecting heat loss, identifying electrical faults, and monitoring wildlife. The VTX transmission feature enhances efficiency by facilitating immediate data sharing and an

• Model: Y0046
• Detector type: uncooled vanadium oxide
• Wavelength range: 8~21µm
• Resolution: 640*512
• Lens: F1.0/9.1mm
• FOV: 48.0°(H)*38.4°(V)*64.9°(D)
• Frame rate: 50fps
• Power consumption: <1.5W

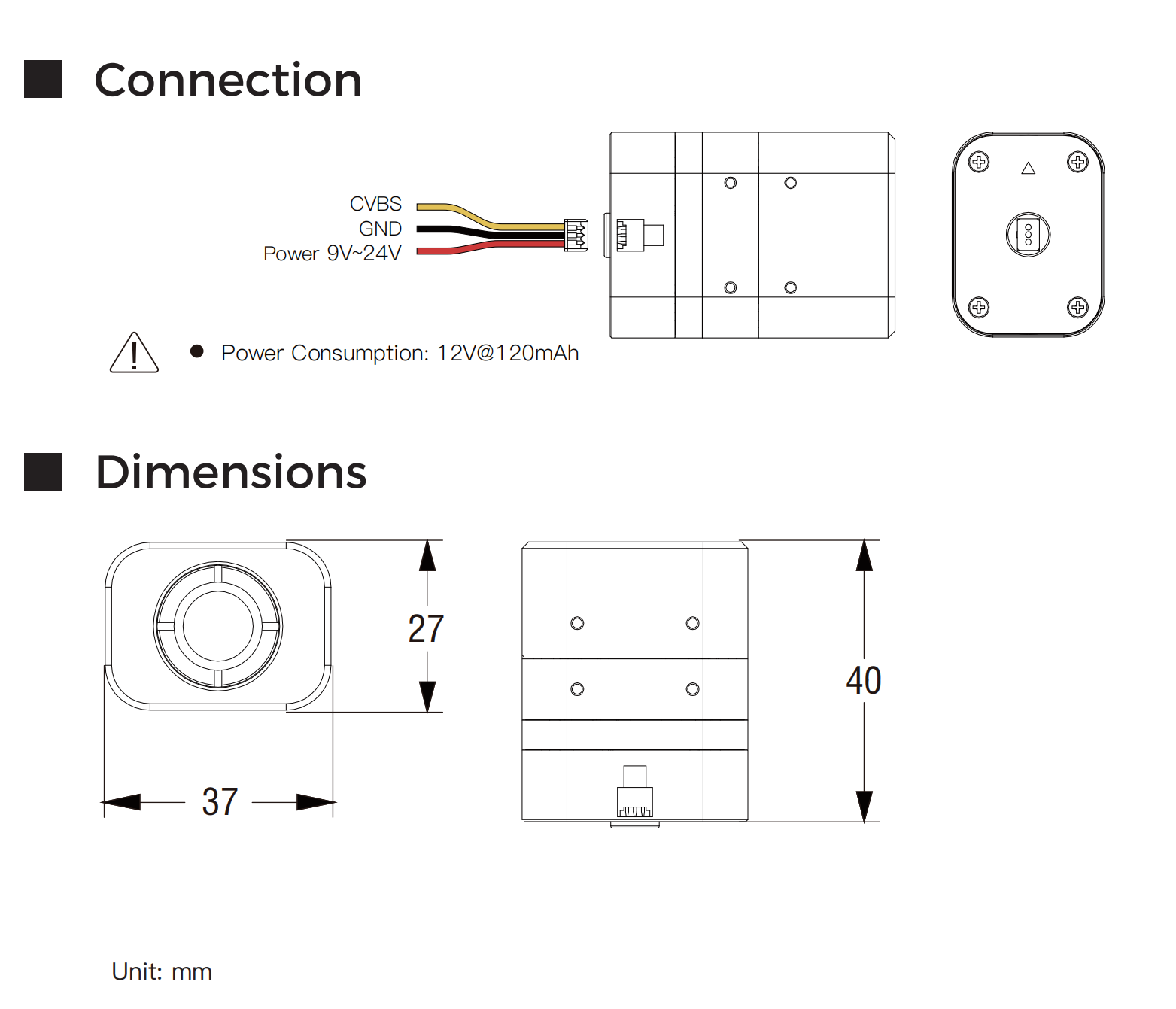

• Supply voltage: 9~24V
• Temperature: -20℃~60℃
• Weight: 61g
